제품 상세 정보:
|
|
| 원래 장소: | 강소, 중국 (본토) |
|---|---|
| 브랜드 이름: | AMAN |
| 인증: | CE |
| 모델 번호: | AMB35 |
|
결제 및 배송 조건:
|
|
| 최소 주문 수량: | / 1 세트 세트 |
| 가격: | US $30,000-50,000 / Sets |
| 포장 세부 사항: | 표준 수출 포장 |
| 공급 능력: | 매월 30 세트 / 세트 |
|
상세 정보 |
|||
| 조건: | 새로운 | 응용 프로그램: | 병 |
|---|---|---|---|
| 가공되는 플라스틱: | PE, PP | 한번 불기 주조 유형: | 주입 한번 불기 조형 |
| 오토매틱: | 예 | 전압: | 고객화된 |
| 힘 (W): | 17.8 kw | 차원 (L*W*H): | 3100*1100*2300 mm |
| 무게: | 2.5 t | 주발동기 힘: | 15 kw |
| 전기 난방 통제 구역: | 3 qty | 최대. 이론적인 주입 수용량: | 158 cm3 |
| 원형 시간을 내리기: | 8 s | 압축공기 체계의 압력: | 1.2 Mpa |
| 형 난방 힘: | 2.8 KW | 나사 줄기의 회전하는 속도: | 10--180 분당 회전수 |
| 수용량을 Plasticizing: | 12 g/s | 보증: | 1 년 |
| 판매 후 서비스 제공: | 유효한 해외 봉사 센터 | 포트: | 중국 포트 |
| 하이 라이트: | 액체 충전물 기계,병 충전물 기계 |
||
제품 설명
Injection Blow Molding Machine
Injection blow molding machine Features
Injection blow modling machine Advantage
1. The bottle blown by this machine has perfect neck formation. Dimension tolerance control is 0.2mm only. the neck is very smooth, no flash can be seen.
2. The bottle bottom is clean, only injection point can be seen, bottle weight tolerance is onl 0.1grm.
3. The bottle parting line is untouchable
4. Wall thickness is evenly distributed
5. No wastage at all
6. Production is high (the machine can control cycle time from 9-15sec.)

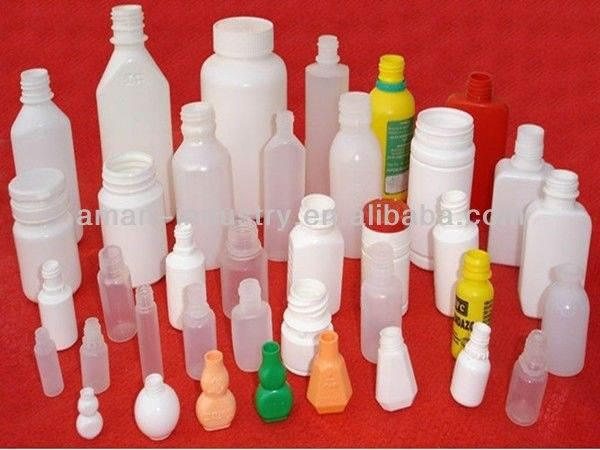

7. The bottle produced by this machine is suitable to pharmaceutical bottle, no human touch.
Injection blow molding machine Technical Parameters
NO. | ITEM | UNIT | DATE |
1 | Dia. of screw | MM | 40 |
2 | Max. retical capacity | Cm3 | 220 |
3 | Total power for cylinder-heating | Kw | 6.5 |
4 | Clamping force of injection mold | Kn | 350 |
5 | Opening stroke | Mm | 120 |
6 | Clamping force of blow mold | Kn | 30 |
7 | Max. plate size of die (L*W) | Mm | 300*200 |
8 | Min. die thickness | Mm | 180 |
9 | Motor power | Kw | 15 |

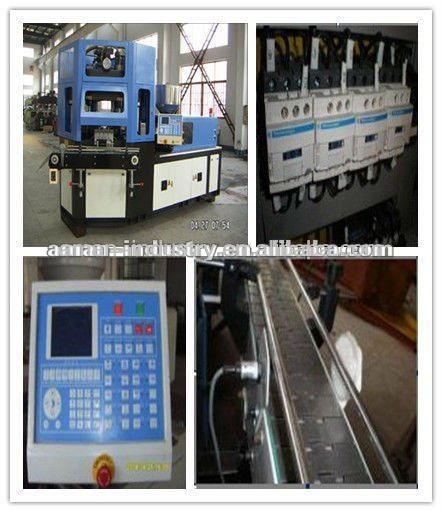

Injection blow molding machine Parts pictures
Injection blow molding machine Main Parts
Parts Name | Brand Name |
hydraulic vale, electromagnetism valve, proportional valve. | YUKEN |
air valve and air pipe connector. | FESTO |
hydraulic hose | ISR |
sealing Parts | SEALTECH |
hydrolic motor | INTERMOT |
microcomoputer controller | TAIWAN |
contactor and relay. | SCHNEIDER |
short-circuit equipt | GMERLIN GERIN |
air tube | CAMOZZI |
conveyer motor | TAIWAN |
main motor | BEIDE |
proximity switch. | TAIWAN |
Q1:What’s your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.
Q2:How can I install my machine when it arrives?
A2:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines. also we will send you a machine manual for your reference.
Q3:How about the spare parts?
A3: we will offer you a spare parts list for your reference
